What type of wire is used for earthing?

Generally, copper wire can be used as earthing lead but, copper strip is also used for high installation and it can handle the high fault current because of wider area than the copper wire. A hard drawn bare copper wire is also used as an earthing lead.

Which size of wire is used for earthing?

Generally, the size of the copper wire used as earth continuity conductor is 3 SWG. Earth wires smaller than 14 SWG must not be used. The minimum size of the earth lead should not be smaller than 8 SWG.

What are the materials used for earthing?

A List of Earthing Products :

• Galvanized/Copper and Alluminium Earth Strips/Bars.
• Galvanized/Copper and Alluminium Solid Earth Plate.
• Solid Copper Lattice Mat.
• Earth Electrodes.
• Light Duty/Heavy Duty Cast Iron Inspection Housing.
• Galvanized/Copper/Alluminium Earth Bus Bars.
• Flexible Copper Braid Bonds.

What metal is best for earthing?

Copper is the preferred metal for grounding conductors and electrodes. This is not only due to its high degree of connectivity, but also its corrosion resistance. In most soils, copper electrodes outlast alternates such as galvanized steel.

Earth Wire and Its Functions

Which type of earthing is best?

The pipe earthing is better than another type of earthing, because it can earth more leakage current, and the possibility of braking in the earth wire is minimum.

Which colour wire is used for earthing in India?

India. The standard for electrical wiring color code in India is as follows. According to the old standard, Red is used for live (or line) power conductor, Black for neutral and Green for protective earth or ground.

Is green wire always ground?

It's all about the wire colors, except...

A bare, green, or green/yellow wire is always a ground. Not every installation has grounds. They are often pushed up into the back of the box. A gray or white wire (light blue in Europe/rest of world) is a neutral, except it can be tagged with tape to use as a "hot".

Which type of earthing is used in homes?

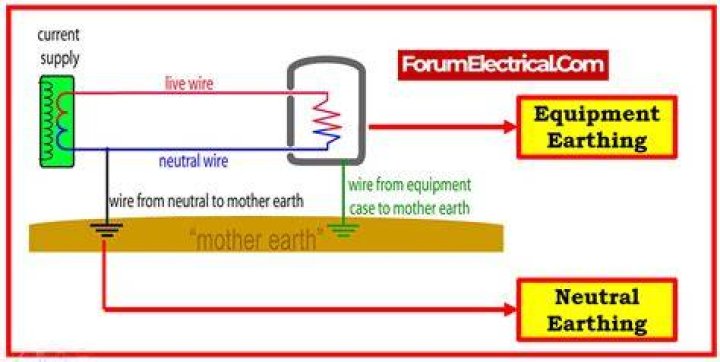

Equipment Earthing

This is the prime type of earthing for homes and other buildings. It deals with the safeguarding of noncurrent carrying apparatus and metallic conductors.

Why is earthing wire thin?

If the current is smaller then the resistance can be increased by using thinner wires without too much of a loss of energy.

What is AWG and SWG?

American Wire Gauge (AWG) is a system of numerical wire sizes that start with the lowest numbers (6/0) for the largest sizes. The gauge sizes are each 26% apart based on the cross sectional area. AWG is also known as Brown & Sharpe Gage. SWG = Standard or Sterling Wire Gauge, a British wire measurement system.

Can we use Aluminium cable for earthing?

The replacement of copper with aluminium is not feasible for buried earthing applications due to corrosion, but even in above ground applications it is not advised, since the latter still has relatively high scrap value.

Can we use GI wire for earthing?

GI wire finds its use for building mains and earthing as well.

What is types of earthing?

There are three types of earthing, they are:

• Pipe earthing.
• Plate earthing.
• Strip earthing.

Is copper wire the ground?

The National Electrical Code (NEC) says that white or gray must be used for neutral conductors and that bare copper or green wires must be used as ground wires. Beyond that are general, industry-accepted rules about wire color that indicate their purpose.

Is copper wire ground or neutral?

Blue and yellow wires are sometimes used as hot wires and as travelers, green wires (and bare copper wires) are ground wires, and white and gray wires are neutral. However, all electrical wires, regardless of their function, may carry an electrical current at some point and should be treated with equal caution.

Is black wire always ground?

Electrical wires are wrapped in colored insulating casings to indicate each wire's purpose. Green, green with yellow stripe, or bare copper are ground wires. Black wires are hot wires that run to the electrical outlet from the switch.

Is black wire for earth?

The color coding of wires is green for earth, red for live and black for neutral so, option A is a correct option.

What colour is 3 core and earth?

The 3 core and earth wiring colours are live brown wire, a neutral grey wire, a green/yellow protective earth wire, and an additional black conductor.

What is RYB electrical?

RYB simply stands for Red, yellow and Blue respectively in a three phase electrical system. In a three phase electrical system, the three phases are separated by an angle of 120 degrees and each phase is given a specific colour, i.e. R,Y and B for the phases to be identified.

Why copper plate is used in earthing?

Copper plates are required in earthing because copper has very low resistance and a good conductor of electricity. The copper plate is used to pass the fault current with a minimum resistance of the circuit.

Which type of earthing is used in India?

Resistance-earthed neutral (India)

A resistance earth system is used for mining in India as per Central Electricity Authority Regulations. Instead of a solid connection of neutral to earth, a neutral grounding resistor (NGR) is used to limit the current to ground to less than 750 mA.

Which chemical is used in earthing?

- Two types of powders that are used in chemical earthing are Bentonite Powder and Marconite Powder, which maintains the resistivity of the soil.
